AL8XGTE-3
Based on the search results, the AL8XGTE-3 module is a product of OKOS (OKOS SAM Systems) and is also associated with UTEX Scientific Instruments. Here’s the information in English:
Product Name: AL8xGTE-3

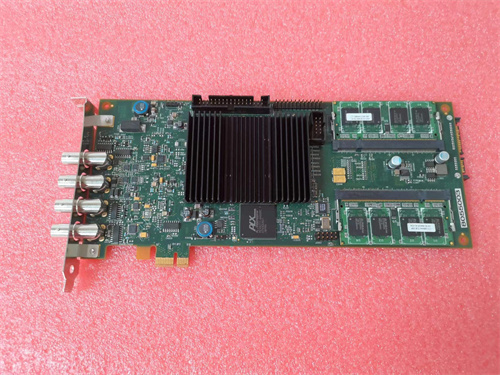

Product Description: The AL8xGTE-3 is an 8-bit, 2-channel Analog-to-Digital (A/D) card designed for the PCI Express x1 bus. It is optimized for high-speed transient capture at a sampling rate of 3 Giga samples per second (GS/s). This card is well-suited for applications requiring very high repetition rates. It features a large dual-ported onboard buffer memory that allows for simultaneous transient recording and readout of captured data. A post-processing section can be used to extract peak information on multiple gates while the captured data is transferred over the PCI Express bus into the PC’s main memory. The analog inputs are DC-coupled and terminated with a 50 Ohms impedance for high signal fidelity over the entire analog bandwidth of over 1 GHz. Input voltage ranges are programmable from 125mVp-p to 2Vp-p.
Product Parameters (Typical):
- Sampling Rate: 3 GS/s (effective, achieved by interleaving two A/D converters)
- Number of Channels: 2
- Resolution: 8 bits
- Analog Bandwidth: Over 1 GHz
- Input Coupling: DC-coupled
- Input Impedance: 50 Ohms
- Input Voltage Range: Programmable from 125mVp-p to 2Vp-p
- Onboard Memory Buffer: Up to 4 Gsamples
- Trigger Modes: Software-generated trigger, analog input threshold crossing (on any channel), external trigger (BNC), digital TTL trigger (internal connector), position-derived trigger (encoder or motor).
- Repetition Rate: Well beyond 100 kHz for short acquisitions.
- Lower Sampling Rates: Achievable by decimation during readout (750, 500, 375, 333, 250 MS/s down to 244 kS/s).
- Bus Interface: PCI Express x1
