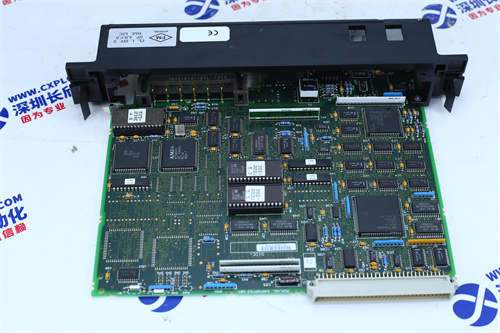

GE IS200ERSCG1A

The GE IS200ERSCG1A is an Exciter Regulator Static Converter (ERSC) module, primarily used within GE’s EX2100 excitation control systems for gas turbines. These systems are crucial for controlling the generator’s output and maintaining grid stability.

The IS200ERSCG1A module specifically:

• Provides DC Excitation: It generates a controlled DC current to excite the generator field winding, regulating the generator’s output voltage.
• Field Discharge: It provides a field discharge function to safely de-energize the generator field during shutdown or fault conditions.
• Control and Monitoring: It likely includes control and monitoring functions for various parameters related to the excitation system.

Key Features:

• Pulse Width Modulation (PWM): Uses PWM technology for efficient and precise control of the DC excitation current.
• IGBT Technology: Employs Insulated Gate Bipolar Transistors (IGBTs) for high-speed switching and efficient power conversion.
