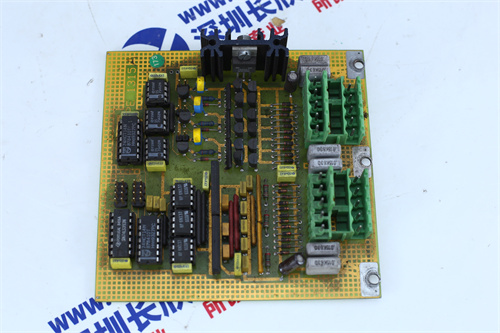

ABB IMFEC12ABB IMFEC12 is a high level analog input module designed by ABB for its Bailey series industrial control system. It is mainly used to collect various analog signals in industrial sites, such as temperature, pressure, flow, etc., and convert them into digital signals for PLC and other controllers to process.
​Product name

Chinese full name: ABB IMFEC12 High level analog input module
Full name: ABB IMFEC12 High Level Analog Input Module

Product description
The main functions of IMFEC12 module are:
​Analog signal acquisition: acquisition of various high level analog signals in industrial sites.
Signal conversion: Converts an analog signal to a digital signal.
Data transmission: The digital signal is transmitted to the PLC and other controllers.
Product parameters and specifications
The specific parameters of the IMFEC12 module will vary according to different configurations and applications, and generally include:
​Number of input channels: usually multiple channels, which can collect multiple analog signals at the same time.
Input signal range: Support a variety of input signal ranges, such as 0-10V, 4-20mA, etc.
Accuracy: High measurement accuracy.
Isolation: Provides isolation between channels to improve system reliability.
Operating temperature: Operating temperature range in industrial environment.
Size: The physical size of the module.
Application field
IMFEC12 module is mainly used in ABB Bailey series industrial control system, widely used in the following fields:
​Process control: Acquisition of process variables, such as temperature, pressure, flow, etc., for process control.
Data acquisition: Collect field data for data analysis and report generation.
Fault diagnosis: By monitoring analog signals, equipment faults are detected in time.
Matters needing attention
Compatibility: IMFEC12 module is mainly used for the control system of ABB Bailey series, and the compatibility with other brands needs to be verified.
Configuration: Before using the IMFEC12 module, it is necessary to perform correct configuration, including input range, range, filtering, etc.
Maintenance: Check and maintain the module regularly to ensure that it is working properly.
