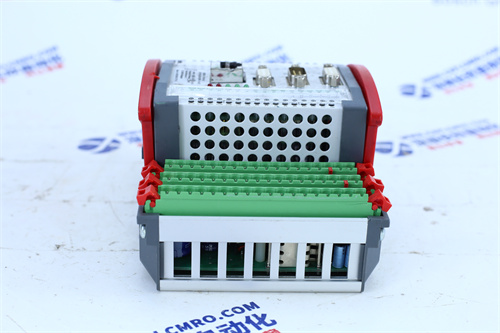

B&R 7DM465.7

The B&R 7DM465.7 is a multi-functional digital hybrid I/O module designed to connect external digital signals (such as switching signals, sensor signals) to B&R automation systems. It integrates digital input and output functions and can be flexibly adapted to various automation applications.

Product parameters and specifications

Input:
16 digital inputs
Input voltage: 24VDC

Input type: leakage type
Input response time: 1ms
Output:
16 transistor output
Output voltage: 24VDC
Output current: 0.5A
Others:
The TB718 terminal block needs to be ordered separately
Supports multiple bus systems (please refer to the product manual for specific bus types)
Main function
Digital signal acquisition: The external digital signal is converted to the PLC can recognize the signal.
Digital signal output: the digital signal of the PLC is converted to the signal of the control external equipment.
Flexible configuration: The input and output mode of the module can be flexibly configured through programming software.
High reliability: Industrial grade design, suitable for harsh industrial environment.
Application field
Industrial automation: Widely used in various industrial automation systems, such as:
Machine tool control
Packaging machinery
Transport system
Logistics automation
Process control: used to collect various switching signals in the process and control the actuator.
Product characteristics
Input/output integration: One module has both input and output functions, saving space.
High density: Integration of 16 inputs and 16 outputs in a compact space.
Flexible configuration: Input and output types and functions can be configured as required.
High reliability: Industrial design is adopted to ensure the long-term stable operation of the module.
