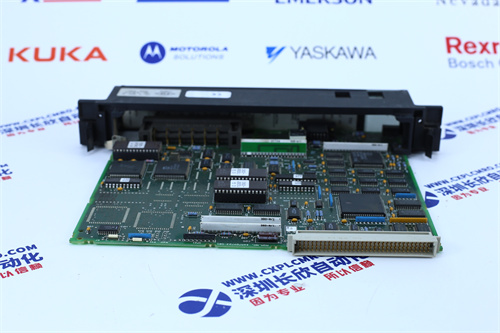

GE IC698CMX016-ED

The GE IC698CMX016-ED is a control memory switch module of the GE Fanuc RX7i family used for communication with PACSystems RX7i programmable controllers. The module facilitates the transfer of information between the device and the PLC, which is carried out on a network of 2.12 gigabyte fiber optic lines. The network can host 256 nodes, all of which are aligned with 5,565 devices. It uses reflective memory technology where nodes are connected to each ot

er in a Daisy ring pattern, ensuring that any change in state that communicates with one node can be forwarded to all other nodes1 without delay. The IC698CMX016-ED module, part of Emerson Automation (formerly manufactured by GE Intelligent Platform (GE IP)), shares deterministic data between PLCS over a fiber-optic network.

Product parameters:

Data transfer rate: from 6.2 to 3.2 megabytes per second, depending on the density of redundant information1.
Effective data rate: 2.12 gigabyte 1.
Reflected memory capacity: 16 megabytes 1.
Maximum distance between nodes: up to 300 m 12.
Interface: Use 62.5 micron core LC connector 1.
Power requirements: Carrying 5 volts of bus, requires at least 1.2 amps of current to operate 1.
Dynamic packet size range: 4-64 bytes 2.
Maximum network transfer rate: 43 MB/ s for 4-byte packets; For 64-byte packets, the rate is 174 MB/ sec2.
Specifications:

Installation: Easy to install in the RX7i PLC rack and does not require the use of any additional protocols1 to run.
Working environment: suitable for electromagnetic harsh environment, suitable for low temperature to high temperature working environment 3.
Anti-interference design: with EMC anti-interference planning 3.
Communication interface: Includes an LC fiber port that supports 2.12 Gbaud transmission speed 2 over multimode fiber media
