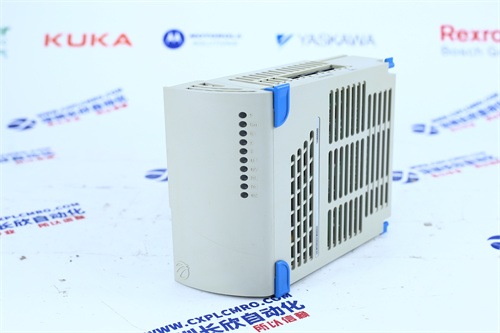

TRICONEX 7760059030

The Triconex 7760059030, known as the Triconex 9563-810, is a key component of the Honeywell Triconex Safety Instrumentation System (SIS). This module is often referred to as a high-performance module and is mainly used for the access and processing of field signals. It has high reliability, redundancy and safety, and is widely used in the safety instrument system of petrochemical, electric power, nuclear power and other industries.

Main function
Signal access: Connect various types of field sensors, such as switches, transmitters, etc., to collect safety-related digital and analog signals.
Signal processing: The collected signal is preprocessed, filtered, amplified and other operations to provide reliable input for the subsequent security logic.
Diagnostic function: The module itself has a powerful self-diagnostic function, which can monitor the health status of the module and issue an alarm in time.
Redundant design: The use of redundant design to improve the reliability of the system, to ensure that the system can still operate safely in the event of failure.
Product parameters and specifications (typical values, specific parameters refer to the product manual)
Number of channels: Depending on the specific model and configuration, there can be multiple channel numbers and types of modules.
Input type: digital input, analog input
Measurement range: depends on input type and channel
Resolution: High
Accuracy: High

Isolation mode: photoelectric isolation
Interface: Triconex system bus
Mounting method: DIN rail mounting
